BEM Orion Ultra Slim tankless water filter with 5-stage filter system Direct-Flow

BEM Orion Ultra Slim tankless water purifier with 5-stage filter system

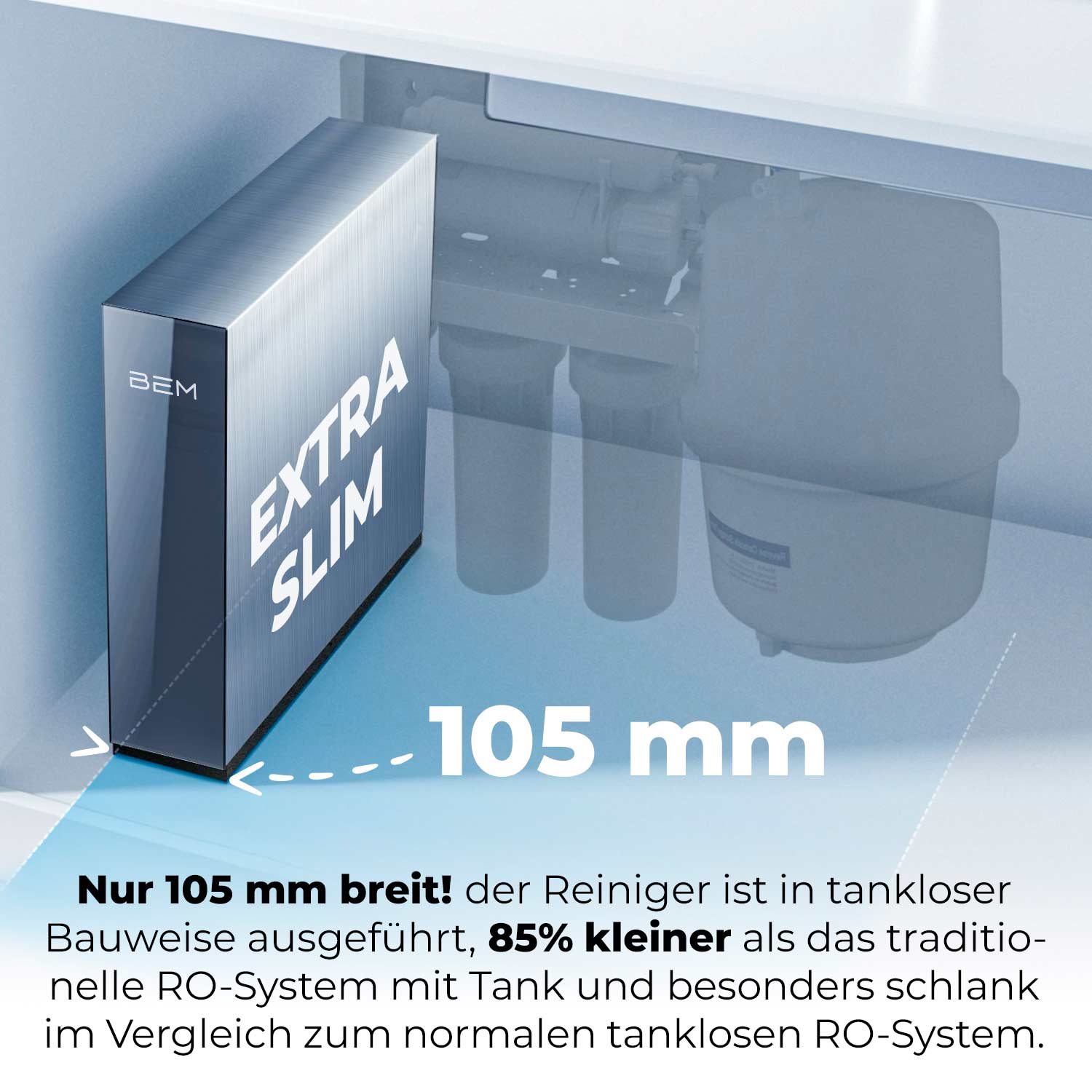

• EXTRA SLIM: only 105 mm wide! the purifier has a tankless design, 85% smaller than the traditional RO system with tank and particularly slim compared to the normal tankless RO system.

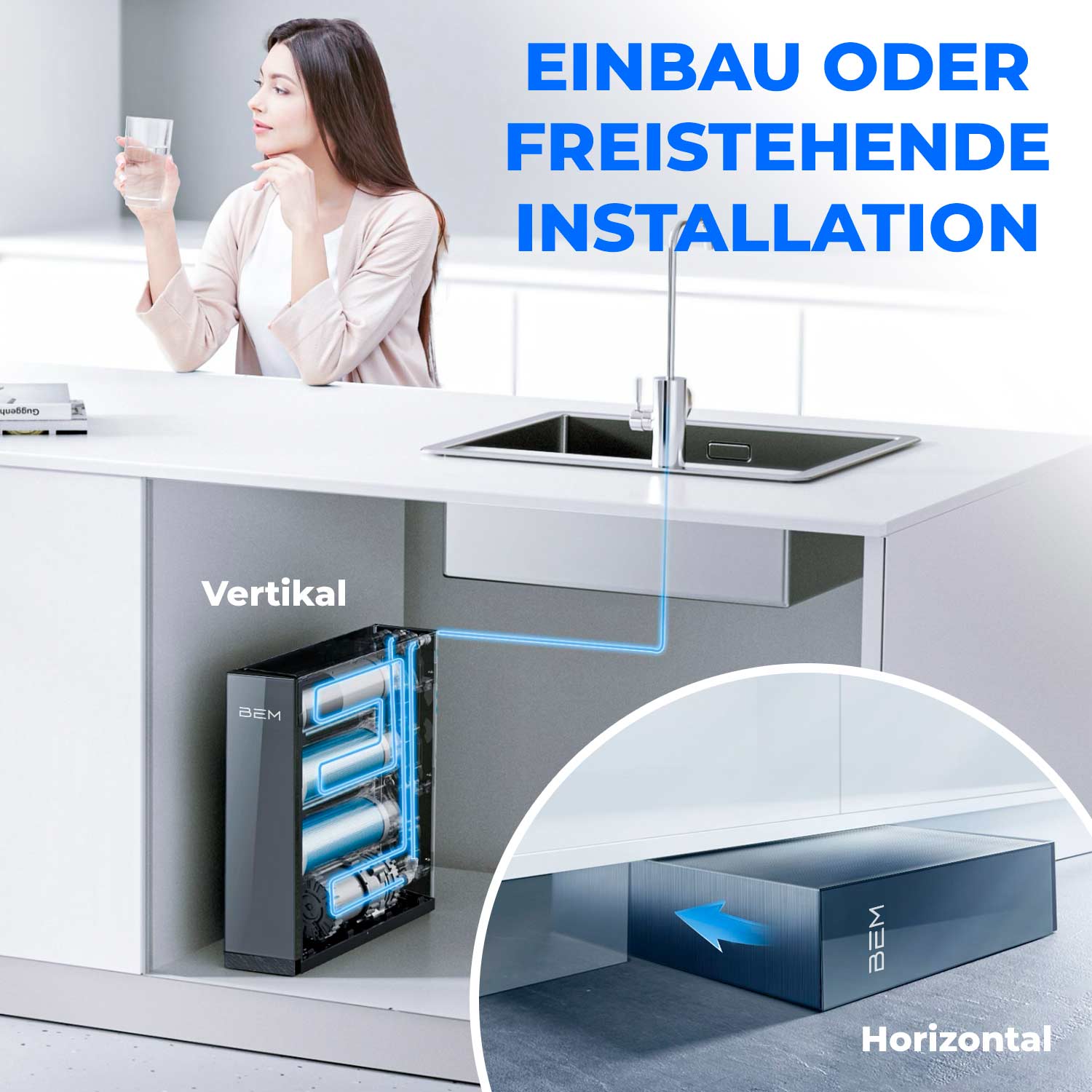

• INSTALLED OR FREESTANDING: Vertically or horizontally installed or freestanding, BEM Orion Ultra Slim is so slim that it can fit in several places, even in various confined spaces, including the baseboard of the sink cabinet!
• 5-STEP HIGH-PRECISION FILTRATION: The filter system removes heavy metals, viruses, bacteria, chlorine, large particles and dissolved solids from tap water and improves the taste.

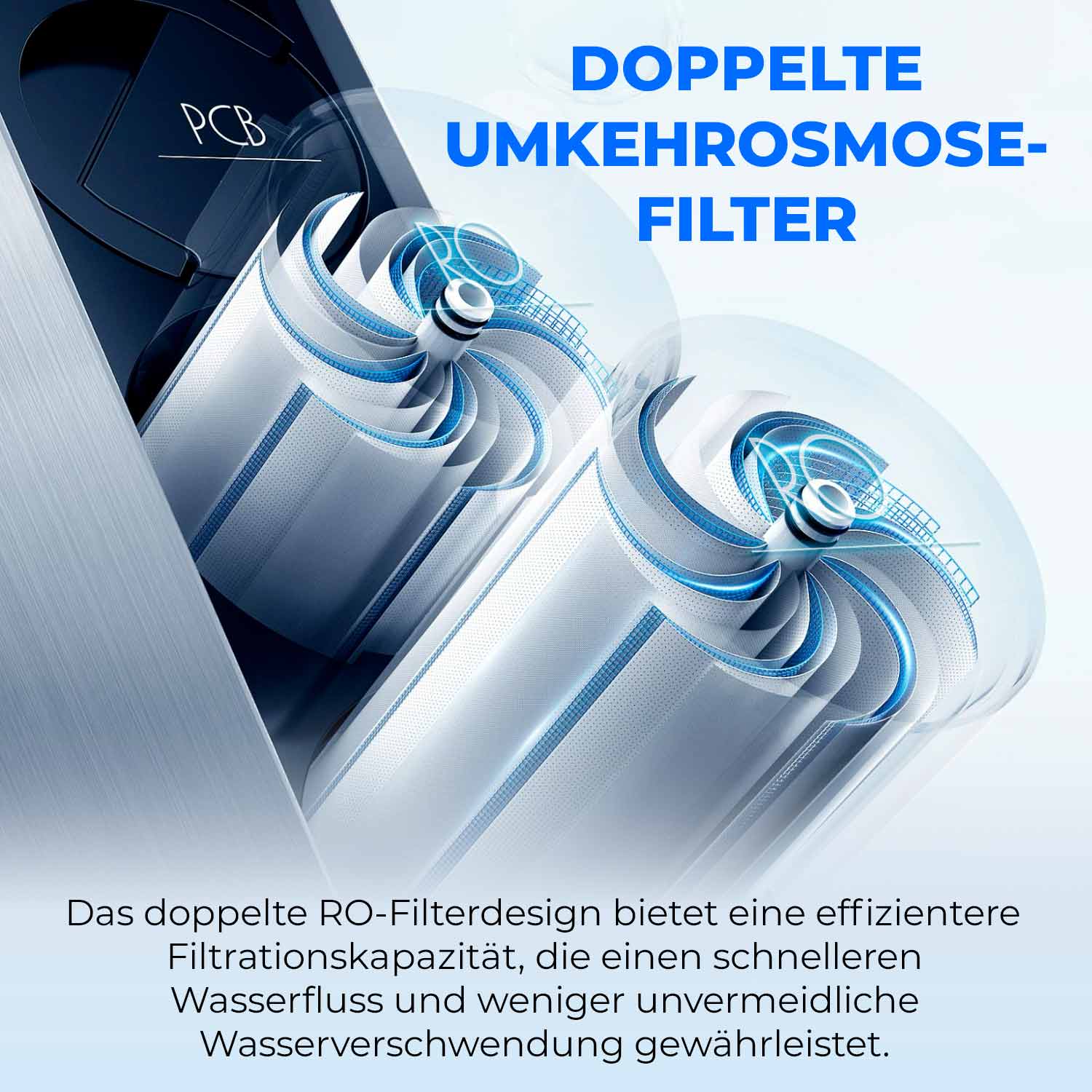

• DOUBLE RECOVERY RO FILTERS: The double RO filter design provides a more efficient filtration capacity, ensuring faster water flow and less unavoidable water waste.

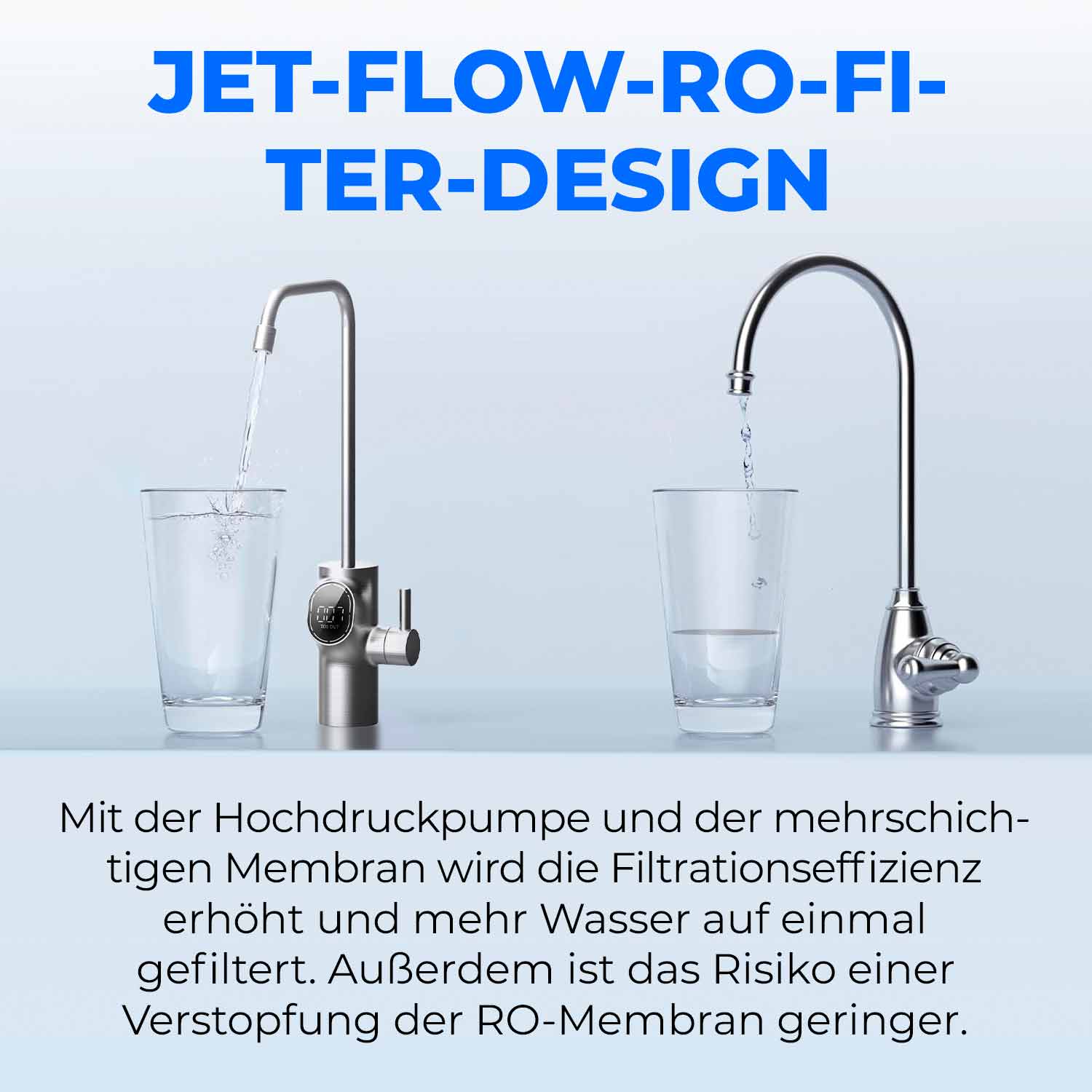

• JET-FLOW RO FILTER DESIGN: With the high-pressure pump and multi-layer membrane, the filtration efficiency is increased and more water is filtered at once, and there is less risk of RO membrane clogging.
• POWERFUL BUT QUIET: The noise level has been reduced by 25%*, so that the powerful filtration and low noise level are maintained.
• TDS VALUE & FILTER REPLACEMENT REMINDER: Direct display on the smart tap
• EASY FILTER CHANGE: only one step to remove or insert the filter.
• FEWER FILTER CHANGES, MORE COST SAVINGS: It is recommended to change the RO filter every 36 months
• MODERN AND DURABLE: The SUS430 stainless steel is highly resistant to corrosion, even in the humid environment under the sink!
• SAFE TO USE: Immediate interruption of the water supply for safety if a water leak is detected.
• AUTOMATIC RINSING SYSTEM: Automatic rinsing of impurities adhering to the membrane to prevent clogging of the pores and ensure a longer service life of the RO filter.
• ENERGY COST SAVING: The main unit goes into standby mode after 15 minutes of non-use. The smart tap automatically switches the light off after 1 minute of non-use. So you can save more energy!

• Reverse osmosis filtration system
• Up to 0.0001 μm filtration precision
• Power supply voltage and frequency (V/Hz) - 100-240V 50/60Hz
• Power consumption - 80W
• Treatment capacity (L/h) - 60L/h & 90L/h
• Pure water flow rate: 1.5 liters/minute
• Rated life: 3,000 liters (NOTE: The life of the filter depends on the duration of use and the quality of the water supply)
• Filtration principle: Reverse osmosis
• Does it require a power supply: Yes
• Descaling: No
• Disinfection function: not supported
• Cooling function: not supported
• Heating function: not supported
• Installation method: under the kitchen counter

• Rated voltage: 100-240V AC
• Rated frequency: 50/60Hz
• Rated current: 4A
• Power consumption: 80W
• Protection class: Class II
• Water inlet source: Municipal tap water
• Inlet water pressure: 14-60 psi
• Operating and storage temperature: 4~38°C
• Water inlet temperature: 4~38°C
• Product dimensions (DxWxH): 444x105x414mm

• RO filter life (1st and 2nd stage): 12-36 months or 1,899 gallons (max. 7200 liters)
• PCB filter life (3rd stage): 6-12 months or 633 gallons (max. 2400 liters)

• pH: PH 6.5～8.5
• Applicable environmental conditions: 4～40℃
• Applicable water pressure range: 0.1～0.4 MPa
• Feed water temperature: 5～38℃
• Applicable feed water - GB5749-2006 TDS≤350ppm

• Degree of desalination ≥90%
• Chlorine reduction ≥90%
• Colon bacillus ≥90%
• Heavy metal removal ≥90%
• Reduction rate of oxygen consumption ≥25%
• Odor/taste - NA
• Visible object - NA

• Product dimensions: 44.4 x 10.5 x 41.4 cm
• Net weight: 12.2 kg
• Color: Black-Silver

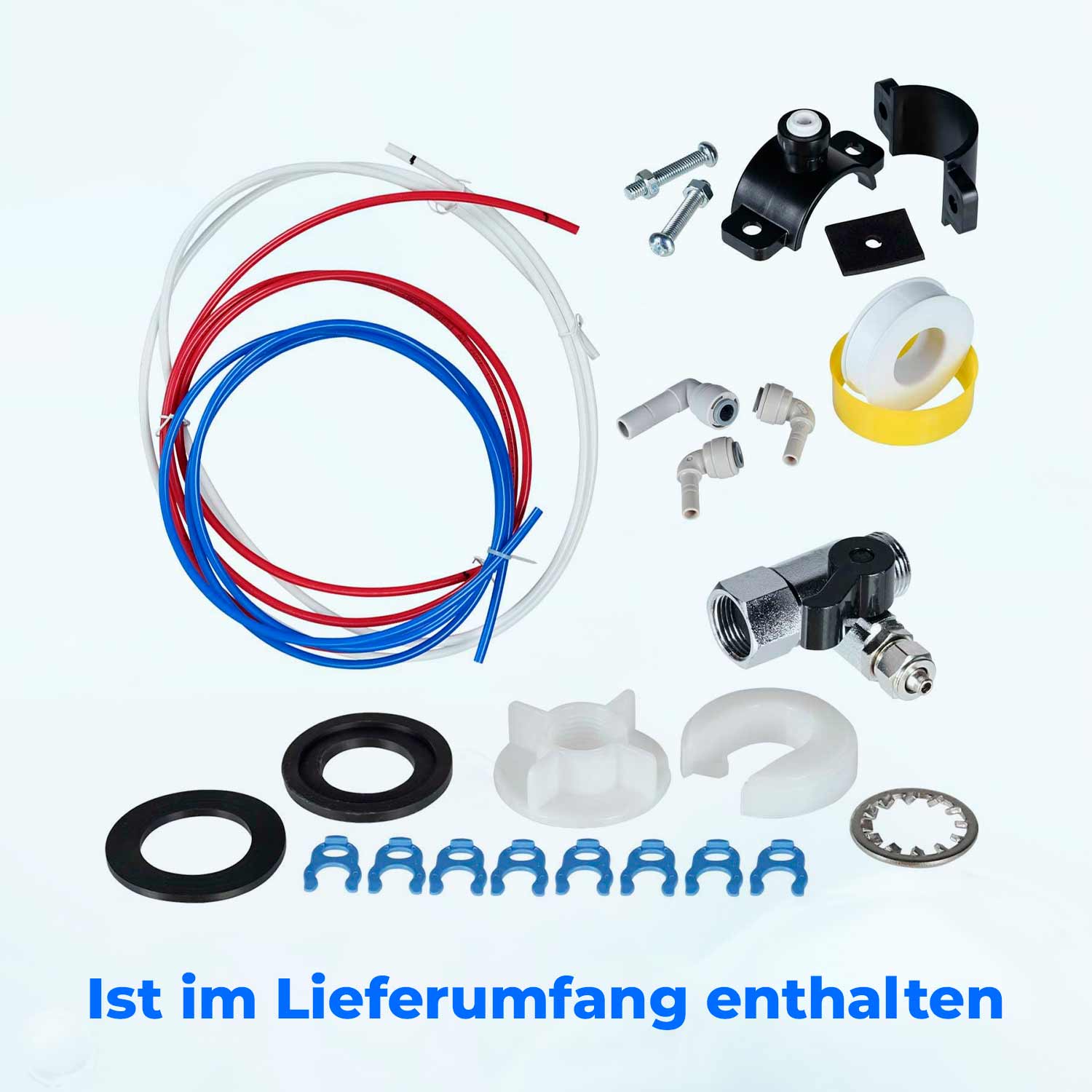

• 3-Way Ball Valve 3/8" x 1/4" – For connection to the water supply and water flow control
• Power Supply Unit (Adapter) – External power adapter for the filtration system
• Wall Mount Brackets for Power Supply – Metal brackets for fixing the power adapter to the wall
• Wall Mounting Hardware for Power Supply Brackets – Expansion plugs and screws for secure installation
• Reducer Adapter 3/8" x 1/4" – Thread adapter for connecting different fitting sizes
• PTFE Sealing Tape – Used for sealing threaded connections
• Tube Locking Clips for 1/4" Fittings – Safety clips to prevent accidental tube disconnection
• Food-Grade PE Tubing 1/4" (5 m) – Polyethylene tubing suitable for drinking water applications
• Drain Saddle Clamp Assembly – For connecting the drain (wastewater) line to the drain pipe
• Operating instructions
